A practical guide to cavities, ribs, draft angles, nesting and outer-box integration in custom molded pulp trays and protective inserts.
Start from the protected product

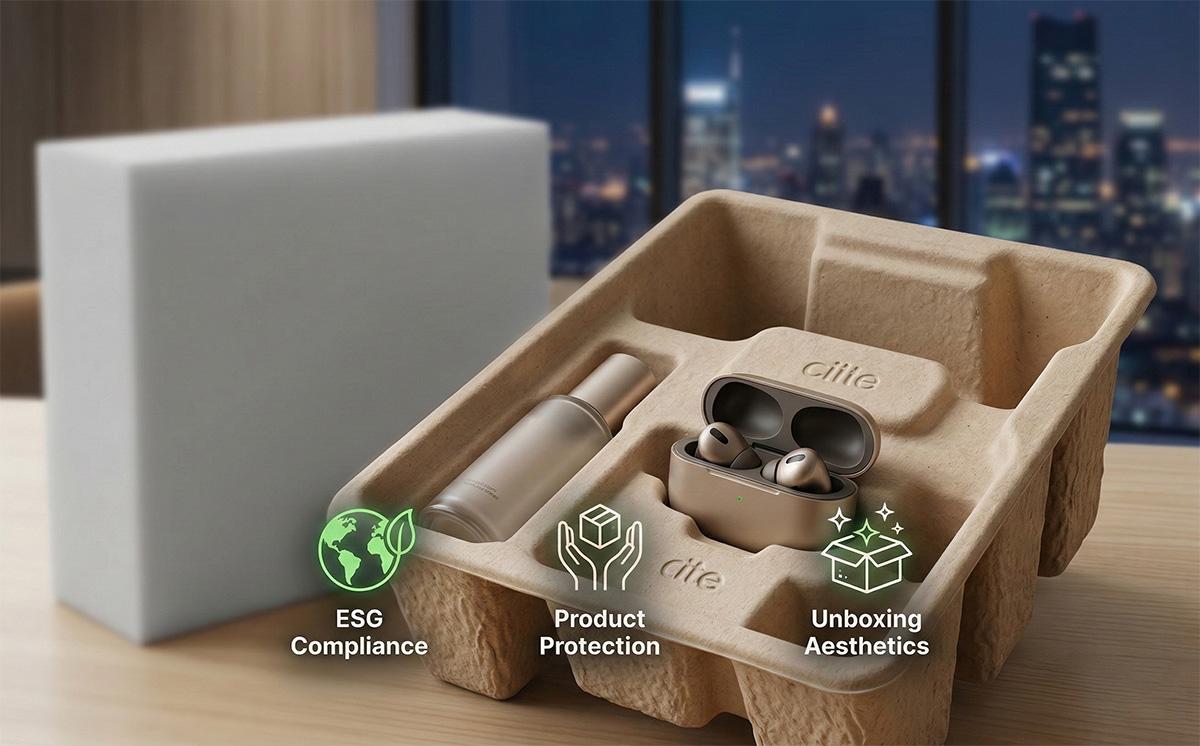

A molded-pulp insert begins with product geometry, weight, orientation, fragile zones and removal points. Cavities, ribs and contact areas should support the item without concentrating pressure on vulnerable surfaces.
- Provide a physical product, accurate 3D data or a dimensioned drawing
- Identify surfaces that may accept load and surfaces that must remain untouched
- Confirm how staff load the product and how the customer removes it
Choose a forming route that matches function and appearance
Natural dry-press parts commonly prioritize protection and a visible fibre texture. Refined wet-press routes can provide a smoother presentation face and sharper edge definition. The correct route depends on protection, appearance, moisture exposure, tooling and expected volume.
Design for tooling, release and nesting
Draft angles and wall transitions help the formed part release from tooling and maintain consistent strength. Nesting depth affects storage, freight and separation on the packing line. Ignoring these factors can create a shape that looks correct in CAD but is difficult to manufacture or pack reliably.
Approve fit before production tooling is released
A structural model or suitable sample should confirm cavity clearance, contact points, finger access and the relationship to the outer box. The accepted geometry, surface standard and dimensional tolerances become part of the tooling and production approval record.
Include the outer box in the distribution test
The insert, product, retail pack and master carton work as one protective system. Movement, compression, vibration and handling checks should use the complete assembly and conditions appropriate to the expected route rather than evaluating the tray by itself.
State environmental claims precisely
Fibre source, additives, coatings and local disposal systems affect end-of-life claims. Use language supported by the exact material specification and available documentation instead of applying a broad claim to every molded-fibre construction.
